NJIT Makerspace Face Shield

Designs, files, and instructions for building and assembeling the NJIT Cleanable Face Shield.

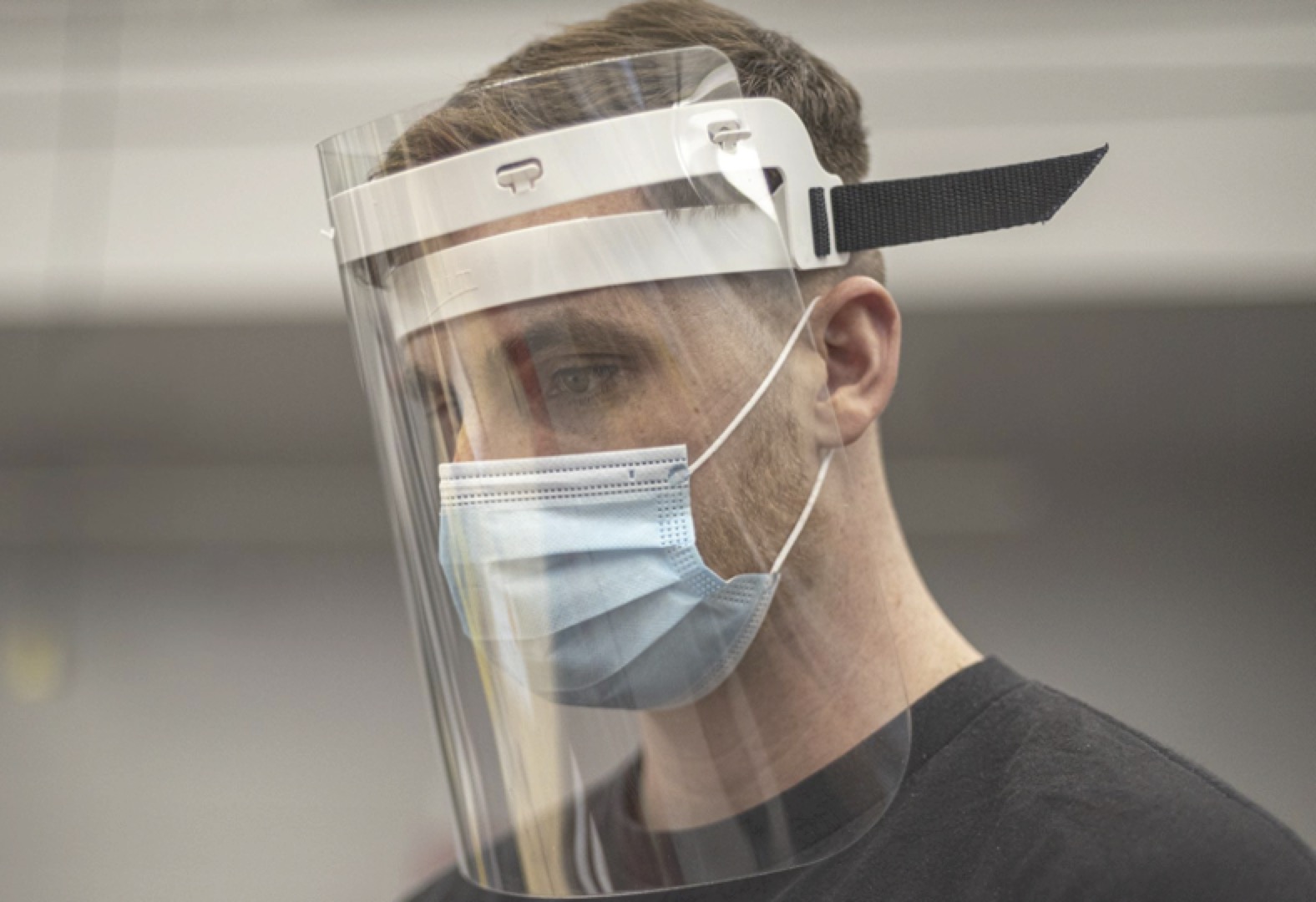

The NJIT Cleanable Face Shield

Provided below are the files needed to manufacture and assemble the NJIT Cleanable Face Shield.

The face shield is made from 4 components:

  • The Head Band: This component can be injection molded or laser cut from a medical grade cleanable plastic such as HDPE or HDPP.
  • The Face Shield: This component can be laser cut or CNC drag knife cut from a medical grade cleanable plastic such as PET or Polycarbonate
  • The Head Cushion: This component can be hand, laser, or CNC drag knife cute from a cleanable closed cell foam with an adhesive.
    • Foam Example Raw Material: McMaster-Carr Part Number: 93565K56
    • Cut into 5" long pieces.
  • The Head Strap Webbing: This component shoudl be cut with a hot knife to avoid material fraying.
    • Hot Knife Cutter: McMaster-Carr Part Number: 834a27
    • Webbing Example Raw Material: McMaster-Carr Part Number: 8619K68
    • Cut into 19" pieces with a taper on each side.

Assembly Instrtuctions
